支持 TouchLink Pro 觸摸屏和 eBUS® 按鍵麵板 視音頻局域網端口可使視音頻設備與企業網絡 分離 支持行業安全標準的通信協議 支持 LinkLicense 6 個支持軟件握手的雙向 RS-232 串行端口

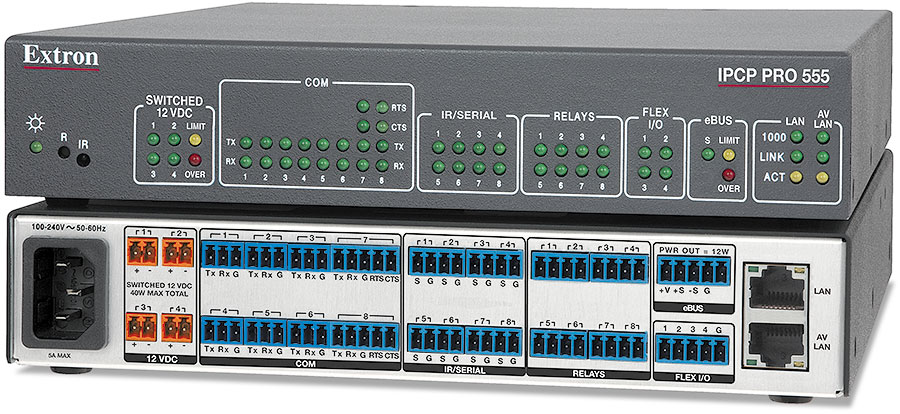

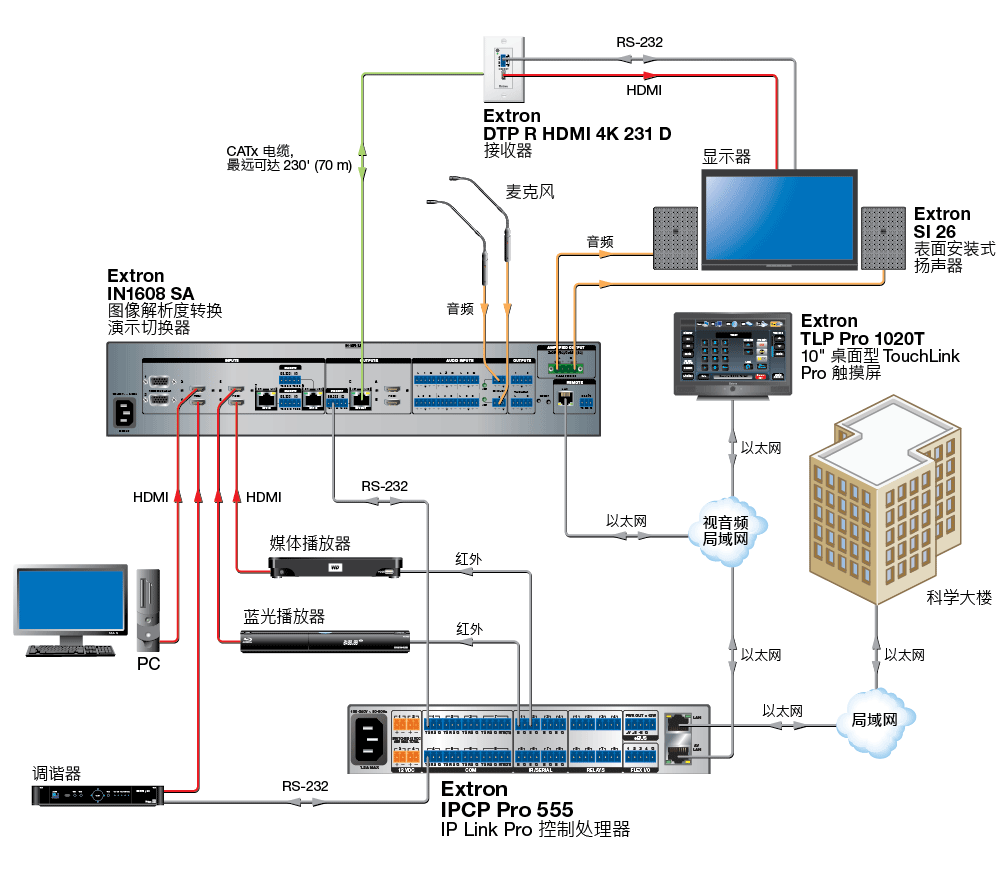

Extron IPCP Pro 555 是一款通用的高性能控製處理器，帶一個視音頻局域網端口。它采用安全標準和雙千兆以太網端口，確保了在當今網絡構架上與多個 TouchLink® Pro 觸摸屏相兼容。其中的視音頻局域網端口專門用來控製本地視音頻設備，可避免外部幹擾或入侵。IPCP Pro 555 可與 Extron LinkLicense® 配合使用，能進一步增強 Extron Pro 係列控製係統的處理能力。在需要隔離控製的視音頻係統中，IPCP Pro 555 是控製多個設備和多種控製信號類型的理想之選。
特性
支持 TouchLink Pro 觸摸屏和 eBUS® 按鍵麵板
視音頻局域網端口可使視音頻設備與企業網絡 分離
支持行業安全標準的通信協議
支持 LinkLicense
6 個支持軟件握手的雙向 RS-232 串行端口
2 個支持硬件和軟件握手的雙向RS-232/RS-422/RS-485 串行端口
8 個紅外/串行端口，用於外部設備的單向控製
4 個多功能輸入/輸出端口
8 個繼電器，用於控製房間功能
4 路可獨立開關的 12 VDC 電源輸出
每個以太網端口都具有以太網監視和控製功能
中央部署 - 使用主控製處理器來部署所有的係統文件、配置和程序 — 通過上傳所有項目文件至主控製處理器來快速部署控製係統。主控製處理器會自動地將文件傳輸至係統內的其它聯網觸摸屏、控製處理器和按鍵麵板。
用於視音頻局域網的 DHCP 服務器
支持常見的 BMS（建築管理係統）協議，如 BACnet、KNX 和 DALI
| IPCP Pro 555 | |
| Memory | |
|---|---|
| | 512 MB |
| | 4.5 GB |
| Software and control options | |
| | Extron Global Configurator® Plus and Professional for Windows®, Global Scripter® |
| | GlobalViewer®, Extron Control for ipads and Web, TouchLink® Pro touchpanels, or eBUS® button panels |
| Ethernet control | |
| | 2: 1 LAN, 1 AV LAN |
| | 2 female RJ-45 connectors |
| | 10/100/1000Base-T, half/full duplex with autodetect |
| | DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| | |
| | Link speed and duplex level = autodetected IP address = 192.168.253.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1 |
| | Link speed and duplex level = autodetected DHCP server = disabled Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 |
| | IP address = 192.168.254.250 DNS = 127.0.0.1 |
| | IP address = 192.168.254.1 DNS = 192.168.254.1 Dynamic leased IP address pool = 192.168.254.100 - 192.168.254.149 Maximum lease count = 50 Lease time = 24 hours |
| Serial control | |
| | 2 bidirectional RS-232, RS-422, RS-485 (ports 7 and 8) 6 bidirectional RS-232 (ports 1 through 6) |
| | (2) 3.5 mm captive screw connectors, 5 pole (6) 3.5 mm captive screw connectors, 3 pole |
| | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
| NOTE The 5-pole ports support both hardware and software flow control.The 3-pole ports support software flow control.The default for both types of ports is no flow control. | |
| | |
| Serial, 5-pole captive screw | |
| | Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS |
| | Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ |
| | Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ |
| | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
| Flex I/O control | |
| | 4 analog input or digital input/output (configurable) |
| | (1) 3.5 mm captive screw connector, 5 pole |
| | |
| | 0 to 24 VDC, clamped at +30 VDC |
| | 29k ohms |
| | 1k ohms to +5 VDC |
| | Programmable range: 100 mV to 24 VDC, default = 2.4 VDC |
| | Programmable range: 100 mV to 24 VDC, default = 0.8 VDC |
| | 250 mA sink from 24 VDC max. |
| | 12 bit A/D, 0 to 24 VDC |
| | 1, 2, 3, 4 = flex I/Os 1, 2, 3, 4; 5 = Gnd |
| IR/serial control | |
| | 8 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
| | (4) 3.5 mm captive screw connectors, 4-pole |
| | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
| | For each port, pin 1 = signal, 2 = Gnd |
| | 30 kHz to 300 kHz |
| | 30 kHz to 300 kHz |
| | 2" (5.1 cm) to 12" (30.5 cm) from the front panel |
| Relay control | |
| | 8 normally open relays |
| | (4) 3.5 mm captive screw connectors, 4 pole |
| | 24 VDC, 1 A |
| eBUS control | |
| | (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles) |
| | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| | Extron STP20-2/1000 or STP20-2P/1000 cable |
| | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details. |
| | 12 watts |
| Switched DC power output | |
| | 4 switched 12 VDC outputs |
| | (4) 3.5 mm captive screw connectors, 2 pole |
| | Maximum 40 watts total |
| | |
| | 0.1 watt to 40 watts |
| General | |
| | Internal Input: 100-240 VAC, 50-60 Hz |
| | 65.2 watts |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| | Convection, no vents |
| | 45.8 BTU/hr |
| | |
| | Yes, with optional 1U rack shelf |
| | Metal |
| | 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide) (4.3 cm H x 22.1 cm W x 26.7 cm D) (Depth excludes connectors.) |
| | 2.5 lbs (1.1 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| | CE, c-UL, UL UL Listed for use in plenum air handling spaces |
| | CE, C-Tick, FCC Class A, ICES, VCCI |
| | Complies with the appropriate requirements of RoHS, WEEE |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
